FillOmat® honey packaging machine

The FillOmat® honey filling system can do a lot:

• packing
• racking
• stir until creamy

The honey is drawn from the honey container/hobbok of any size using the supplied hose and dosed directly into the honey jar without dripping. Various filling nozzles are included in the delivery, which are selected depending on the diameter of the jar and the viscosity of the honey. The machine fills liquid and creamy honey at temperatures of 20° - 40°C. Very creamy and difficult-to-flow honey (e.g. rapeseed) should be heated to temperatures of 25-35 °C for fast and precise filling.

Honey filling temperatures:

• Freshly squeezed liquid honey: 20-25 °C
• Creamy honey with low water content: 26-35 °C

With semi-automatic manual filling, you can create the specified 600 cups of 500 g each per hour with 1.5 people. The electronic control is intuitively designed and doses the medium with an accuracy of +/- 2 grams (e.g. with a filling quantity of 500 g). The filling quantity can be adjusted. Since our filling system is modular, the machine can be equipped with other components (pump head/container/hose/filling nozzle) at any time to fill other products with different viscosities. Pumping for honey cream

Our recommendation:

• “Pumping” operating mode
• Inoculate the honey with honey cream or wait for crystallization to begin.
• Pump 3 to 8 times at intervals of 1 day each

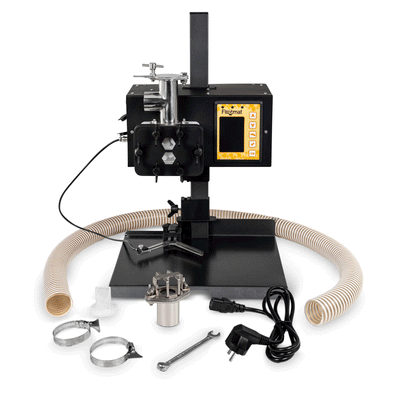

The scope of delivery includes :

• Plug and play filling machine with touch control
• Stainless steel adjustable bracket switch with stop cross
• Black enamelled frame (scratch-resistant surface)
• Check valve for hose
• 1.5 m suction hose Ø 38 mm
• 2 nozzles
• 2 stainless steel hose clamps

Technical data:

• Power supply 230 V.
• Power consumption 350 W
• Engine speed 0-100 rpm
• Noise emission < 80 dB
• Tread width 34.5 cm, depth 30 cm
• Total height 50 cm.
• Weight approx. 18 kilos
• approx. 600 glasses with 500 g per hour
• Filling range 30 g - 45 kg
• Max. pump output approx. 400kg/h
• Repeatability 1-2% depending on filling quantity, medium, speed and bubble-free filling

Design registered and protected by the German Patent and Trademark Office
