Swienty manual picotase

Manual Oswal Hain model picker made by the prestigious Danish brand Swienty in stainless steel. It is used to prick the frames of dense honey (bicol, calluna or other viscous honeys) that do not come out easily by extraction.

Manufactured with the precision of German engineering and using high-quality stainless steel, this manual bee pick is an essential piece of equipment for beekeepers working with dense and viscous honey. Designed by the renowned brand Swienty, this instrument is perfect for preparing honey frames for efficient extraction.

1. Adjust to your frame size

2.Arm height adjustment

3. Use of the machine:
Place a frame on the machine: The frame capture arm at the bottom is pushed to its lowest position. To move the frames
needle plates to the right in the first notch, the handle that moves the needles is pushed down to the position
horizontal.
The pin is now free and the needle plates can be moved fully to the right to the first notch. The machine
Now you are ready to prick the honey box. Press the handle up and down again until the pin cushions are
have moved through all the notches to the left.
The painting is now completely worked by the picotosa.
To prevent the needles from breaking, make sure they are fully retracted before pushing up the frame with the
lifting arm.

Now place a new frame on the picota and repeat the process.

Superior Functionality:

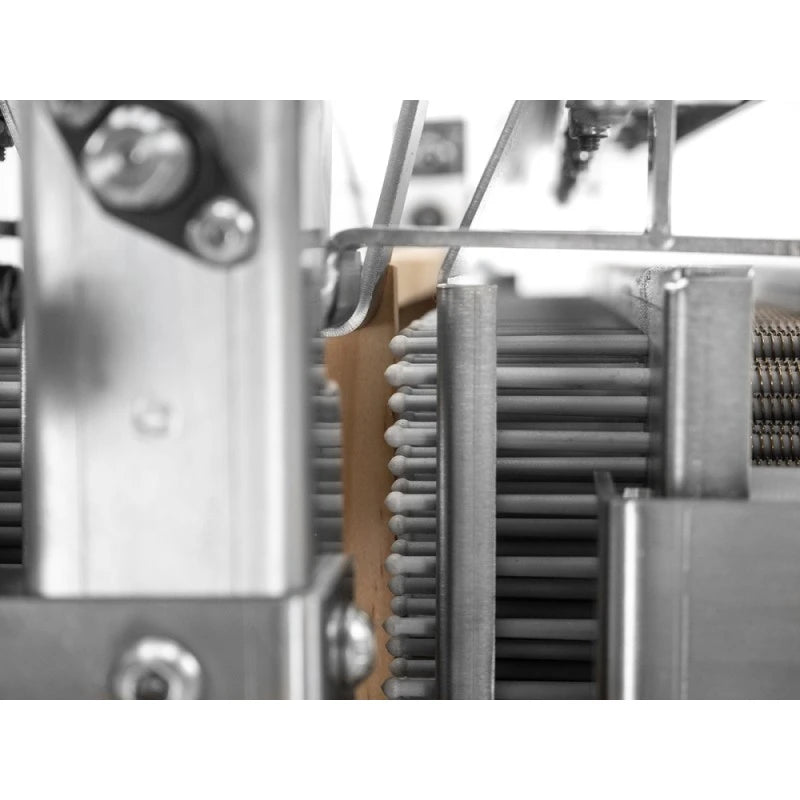

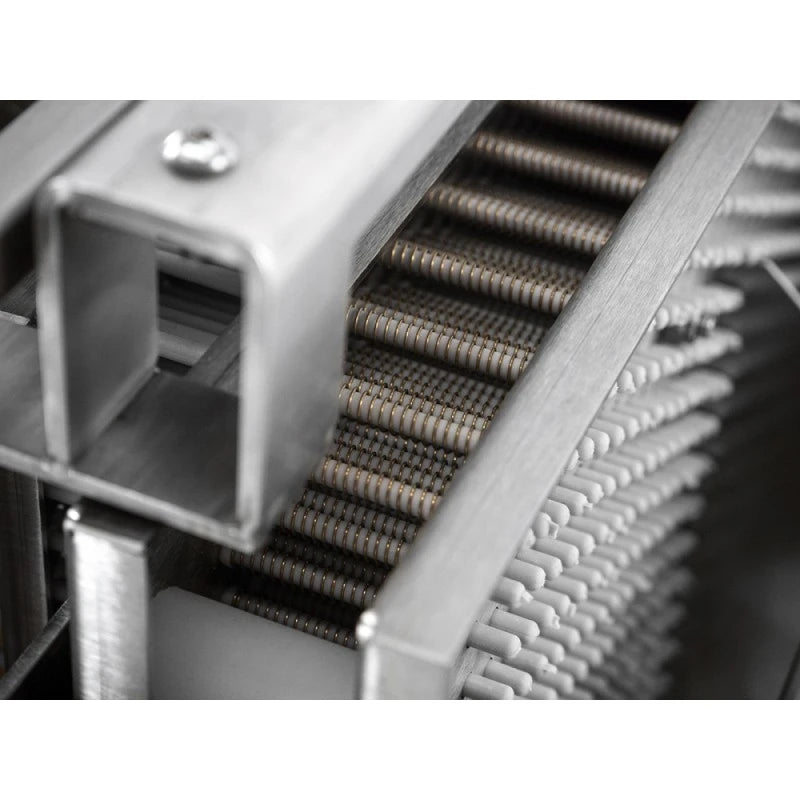

The beeper has two perforated plates with over 1500 pins each, mounted on special springs that allow effective emulsification without damaging the honeycomb cells. This configuration ensures that each honey cell is worked delicately, even in the thickest varieties such as biercol, heather or heather honey.

Ergonomic and Practical Design:

Its manual handling system is simple: place the frame between the needle plates and operate the lever. Each movement of the lever subtly adjusts the frames, ensuring that all cells are treated evenly. The machine accepts frames up to 442 mm x 270 mm, including Dadant and Langstroth models.

Durable Construction:

The all-stainless steel construction ensures durability and easy cleaning. The spring-supported pins are designed to withstand impacts from hardened pollen particles or wooden frames, thus extending the life of the equipment.

Technical Specifications :

• Performance: 2 to 3 frames per minute.
• Dimensions: 66 x 60 cm; Height: 115 cm.

Ideal for both uncapping and preparing frames for extraction, this pick is a versatile and effective tool for handling all types of honey, ensuring a smoother and more productive extraction process.
